Product Description

Material:Plastic

Standard or Nonstandard:Standard

Usage:Pipe Clamp

Material:strength insulation material

Main line:insulated aluminium cable

Top line:insulated aluminium cable

Certificate:ISO9001:2008 and CE

Standard:EN50483-4 , NFC 33-020 , NFC 33-004

Structure:piercing clamps

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 2000        >2000
Est. Time(days)       20-25        To be negotiated

Feature:

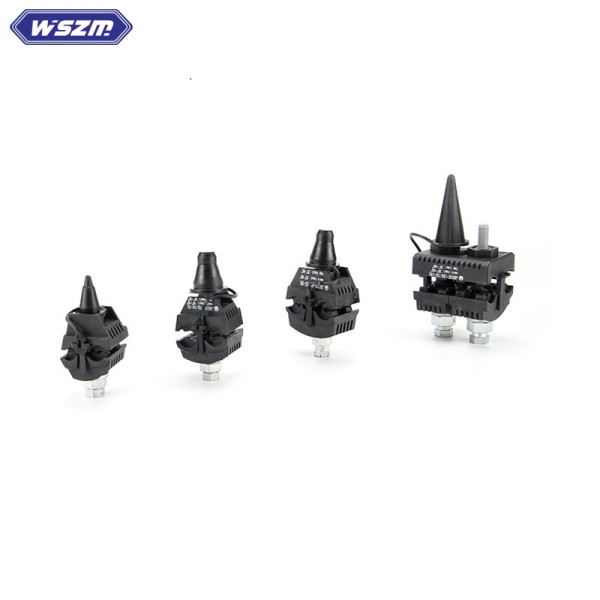

Insulation Piercing Connector

The JBC insulation piercing connectors are applicable for the low voltage aerial cables. These connectors are used to establish connections between bare aluminum cable and insulated aluminum cable. Installation of JBT can be easily done by tightening the bolts while the main line and tap line are connected simultaneously. Stripping of insulation is avoided for Tap line.

>Body is molded from tough and weather resistant materials.

>Special designed shear head bolt allows efficient installation under controlled shear torque which ensure the contact teeth properly Penetrate the conductor without damaging the mechanical strength of the conductor.

>Seals and grease are applied to prevent moisture entering the cable and connector which guarantees excellent waterproof and corrosion resistant performance

>End cap is attached to the body. No loose parts could fall to ground during installation

>Standard: EN 50483-4 NFC 33-020 NFC 33-004
