Product Description

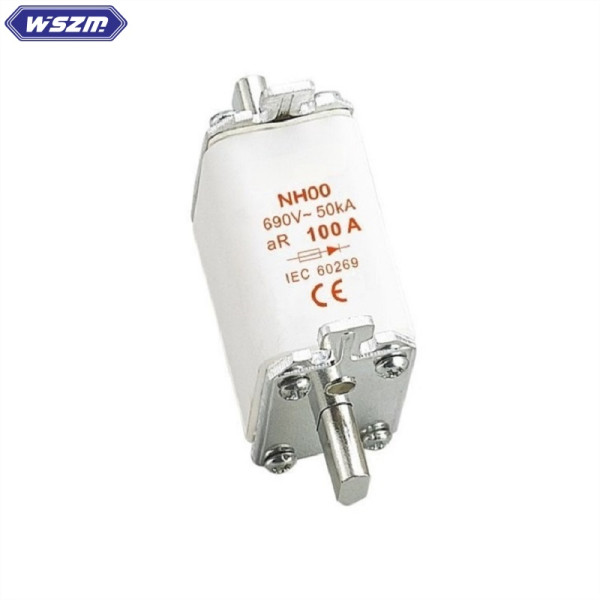

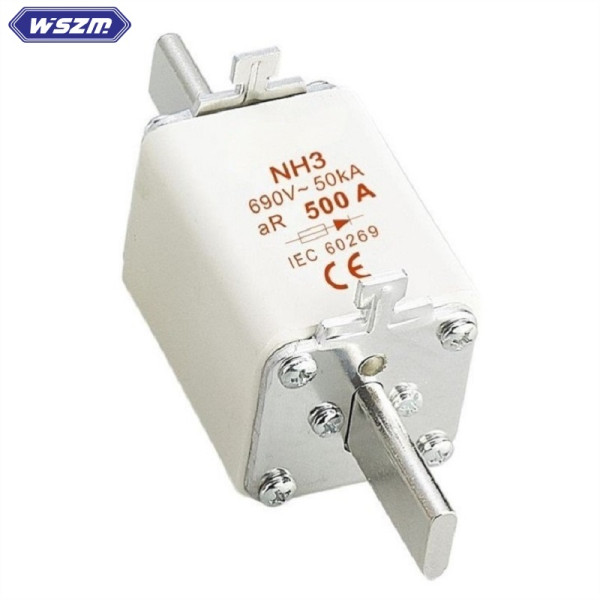

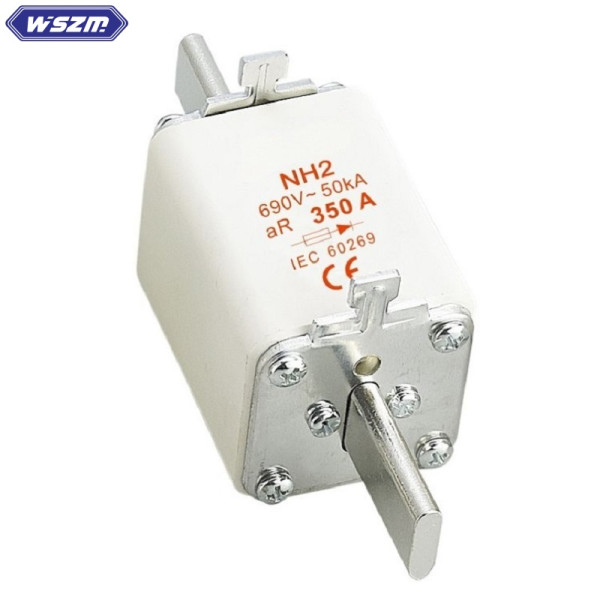

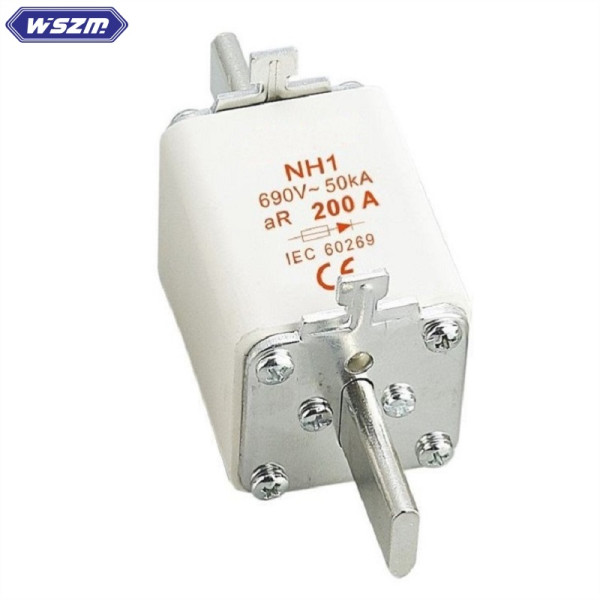

Square body fuses are a perfect solution for the applications that require a compact design and excellent reliability performance. Square body fuses have a variety of installation methods. There are two main installation methods for square fuses in Europe, one is the blade type and the other is the DIN type. These two installation methods are mainly derived from German standards.

Unlike the blade-type fuse that needs to be used with a matching base, DIN type square body fuses are specially designed to mount the fuse with busbar directly. It provides optimal circuit protection for power semiconductor applications with DIN blade mounting and visual indicators.

Features & Benefits

Excellent current cycling performance

DIN Blade Mounting

Saves energy wasted during operation

Various indications and microswitch

Application

DC common bus

Soft Starters

Compact drives

Control Circuits

Supply Ability
100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 5000   >5000
Est. Time(days)    15    To be negotiated
