Product Description

Max. Current: 630A

Max. Voltage: 12kV

Supply Ability

10000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)      1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

Application

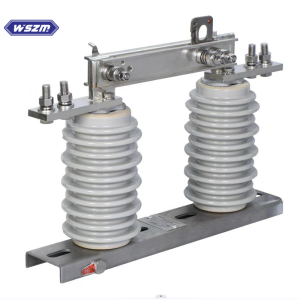

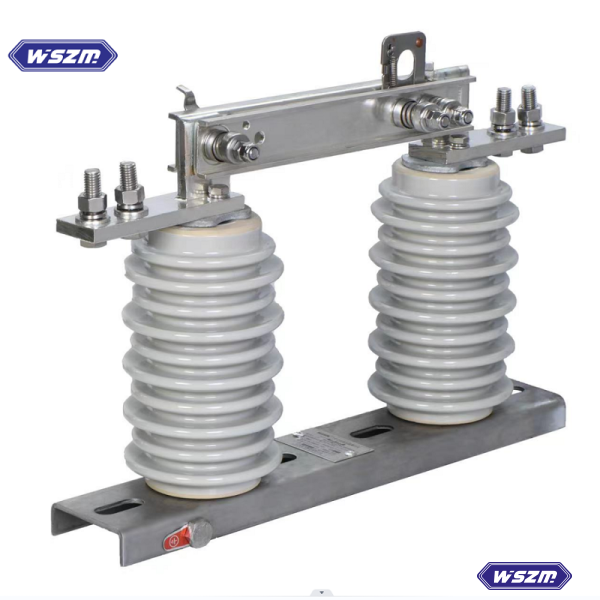

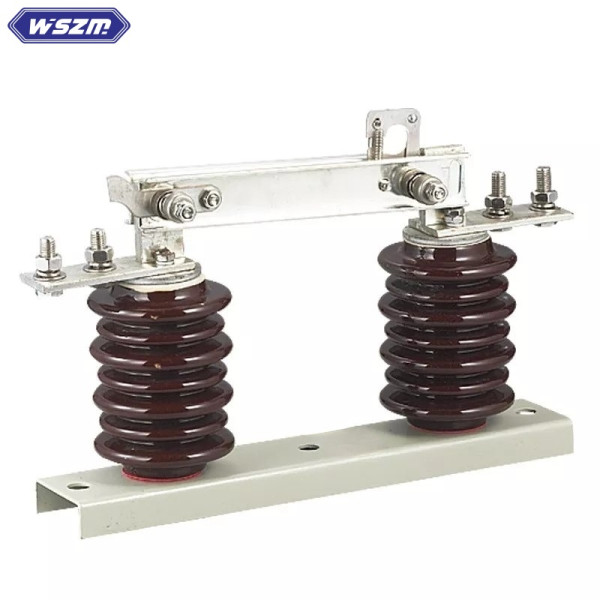

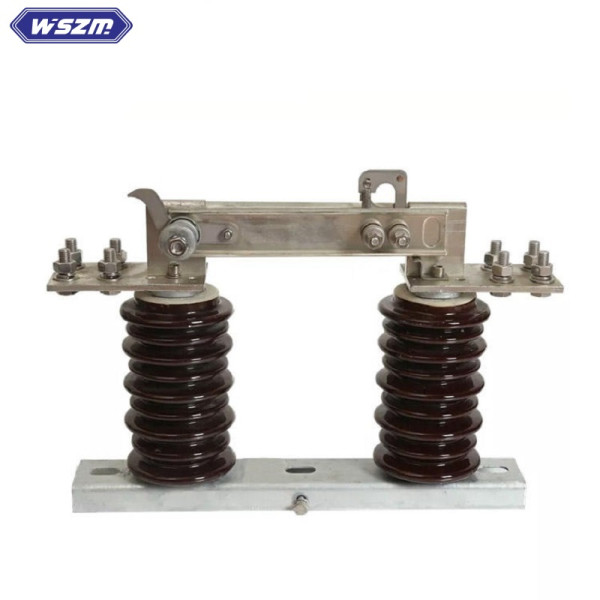

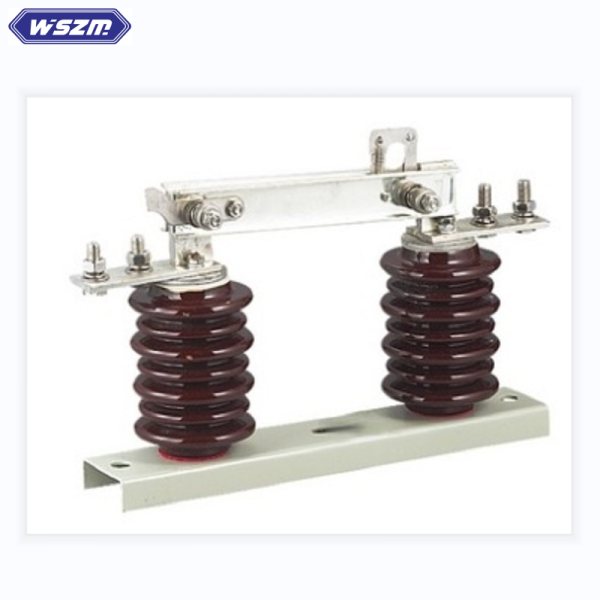

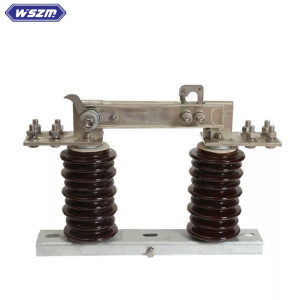

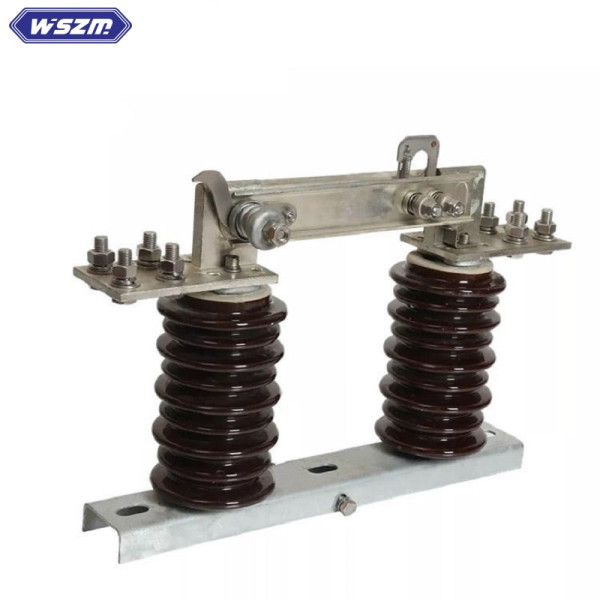

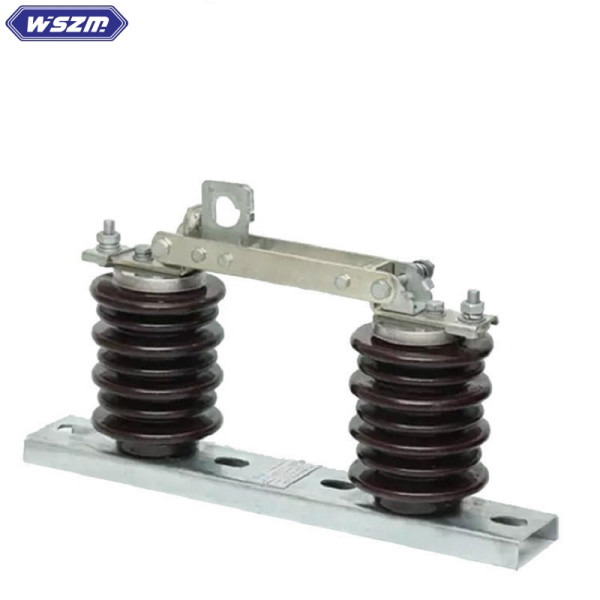

The outdoor AC HV disconnect switch is used to open and close circuit with voltage no- load 50HZ, 11 kv power system. We can produce the products according to customers' demands

Normal Service Condition
u The altitude does not exceed 1000m

u The ambient air temperature: Maximum+40℃; Minimum: General Area-30℃, Paramos-40℃

u The wind pressure does not exceed 700Pa (corresponding to 34m/s wind speed)

u The earthquake intensity does not exceed 8 degrees

u The working situation without frequent violent vibration

u The installation site of ordinary type isolator should be kept away from gas,smoke chemical deposition, salt-spray fog, dust and other explosive and corrosive maters that affect seriously insulation and conduction capability of the isolator

u Pollution-proof type isolator is applies to severe filthy conduction area,however, it shouldn't be any explosive matters and matters causing fire
