Production Details

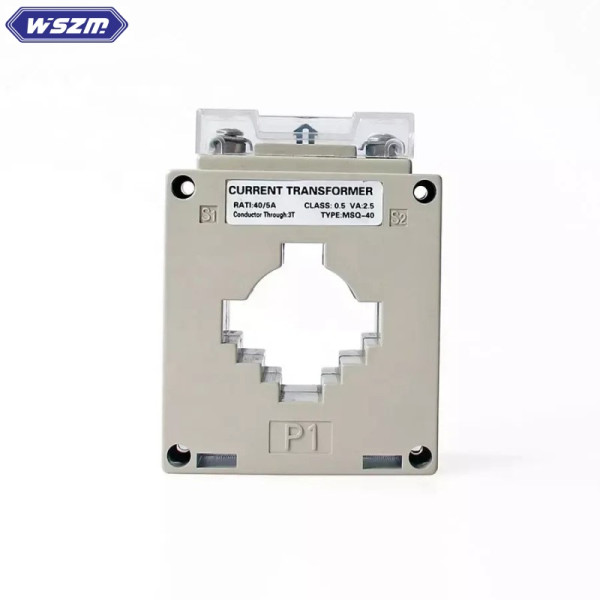

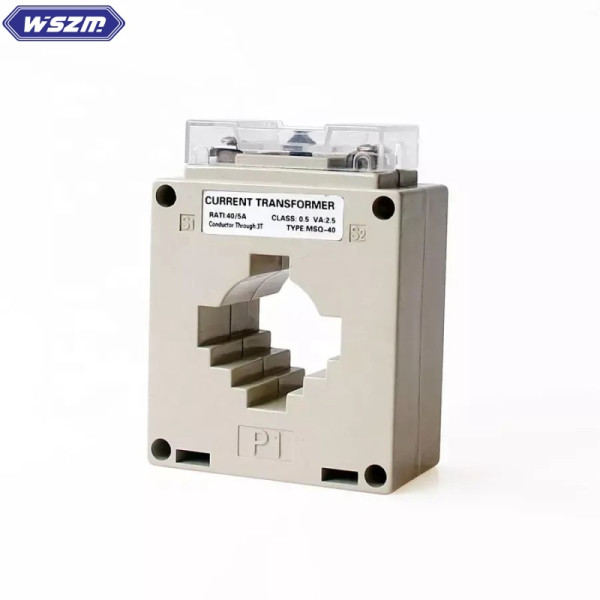

Model Number: MSQ-40 500/5A

Rated Secondary Voltage:0.72kv AC

Coil Structure:Toroidal

Coil Number:Autotransformer

Rated frequency: 50Hz/60Hz

Installation :panel / busbar

Ration: 500/5A

Rated voltage (Um):0.72kv AC

Class: 0.5/1.0

Continuous overload (ld):1.2In

Rated test voltage:3kv AC (1min)

Operating temperature:  -10°C~50°C

Supply Ability

Supply Ability

10000 Piece/Pieces per Month

Packaging & delivery

Packaging Details：Standard export carton

Port：Ningbo

Lead Time:
Quantity(Pieces)    1 - 1000   >1000

Est. Time(days)    10-15    To be negotiated

Description
The MSQ Series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or busbar circuit.The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.

Feature
Two installation methods: Panel / Busbar.
Wide inner window,allowing clamping of big cables or busbar
Wide range of sizes to accommodate all the existing installation
Primary current from 5A to 5000A
