Electric AccessoriesEV Charger

  • EV Charger
  • EV Charger
  • EV Charger
  • EV Charger
  • EV Charger
  • EV Charger
Feature

Production Details


Product name: ev charging station

Plug: schuko 240 VAC plug

Protection: over- and undervoltage protection

Output Power:  7KW

Input/Output Voltage: AC100-240V

Operating current: 32A

Frequener: 50/60Hz

IP Degree:  IP65

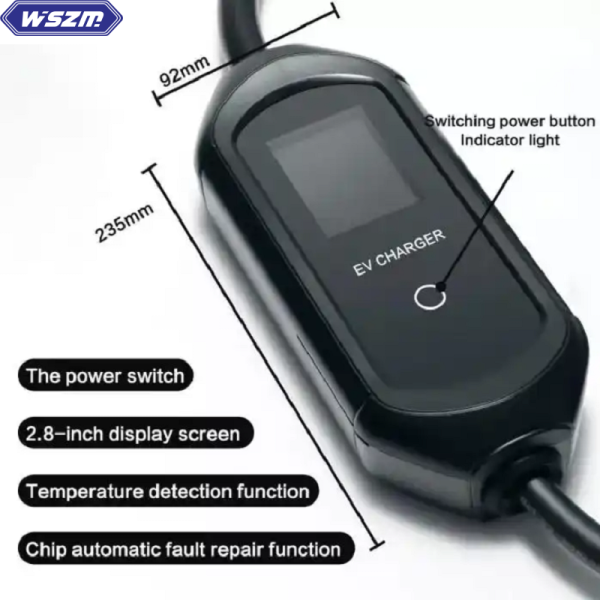

Product size:235*92*53mm

Working Temperature: -25°C~ +55°C

Ambient Humidity :0-95% RH

Elevation: <2000m



Supply Ability


10000 Piece/Pieces per Month


Packaging & delivery


Packaging Details:Standard export carton


Port:Ningbo


Lead Time:

Quantity(Pieces)    1 - 1000   >1000


Est. Time(days)    10-15    To be negotiated




Attention


1. Don't submerge the ev charging box in water,


2. Don't step on, fold or knot the cable;


3. Don't drop the ev charging box or place a heavy object on it;


4. Don't place the charging cable near high temperature object when charging:


5. Don't operate the pile in temperatures beyond its operating range of-25C to 50°C;


6. Power-supply side input cable should be at least 3*2.5mm2/3*6mm2;


7. It is suggested that the power distribution is done by the professionals;


8. Don't put fingers into the charging connector when the power plug is still connecting to the power;


9. Don't use this ev charging box when the cable is damaged;


10. The ev charging box is only for ev charging using;


11.Don't use this device with an extension cord or adaptor.
