Product Description

Unlike typical grid-tied AC systems, the short-circuit current available within a PV system is limited, and over-current protection devices need to operate effectively at low fault current levels.  CFPV fuses can protect your off-grid or grid-tied PV system from accidental ground faults and line faults.

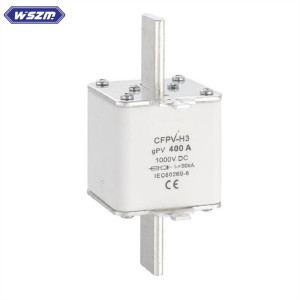

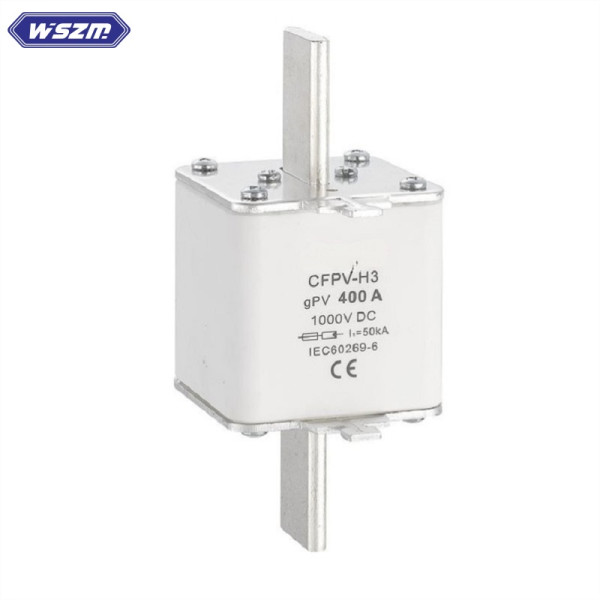

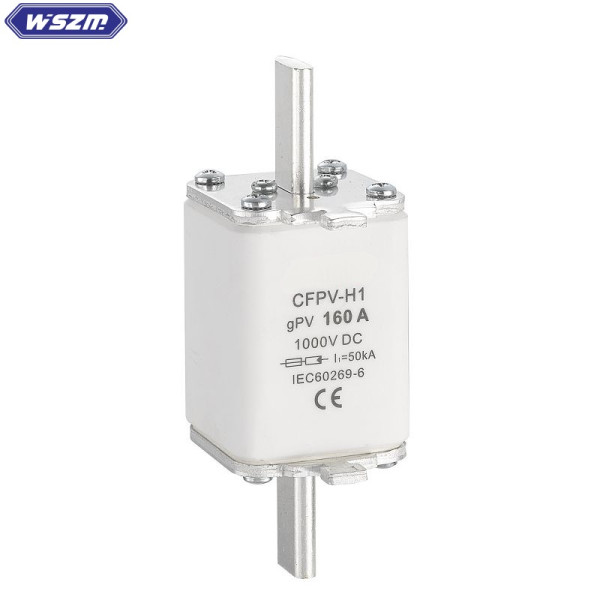

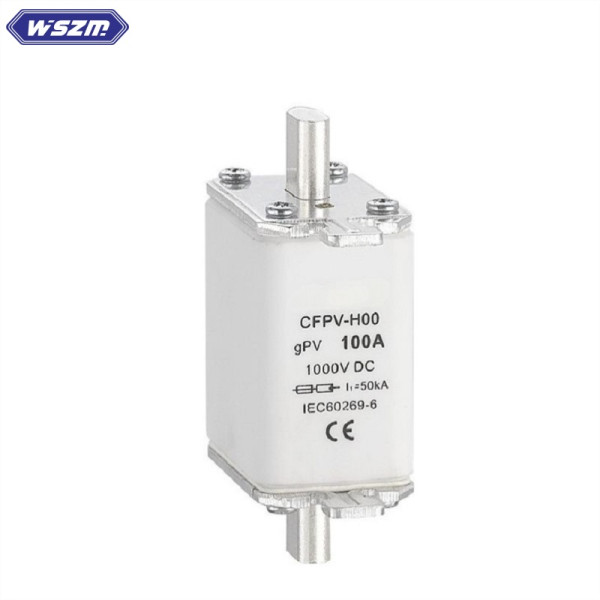

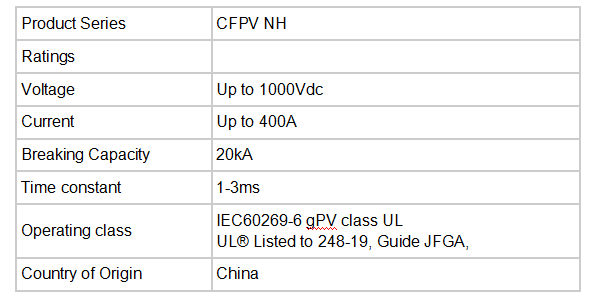

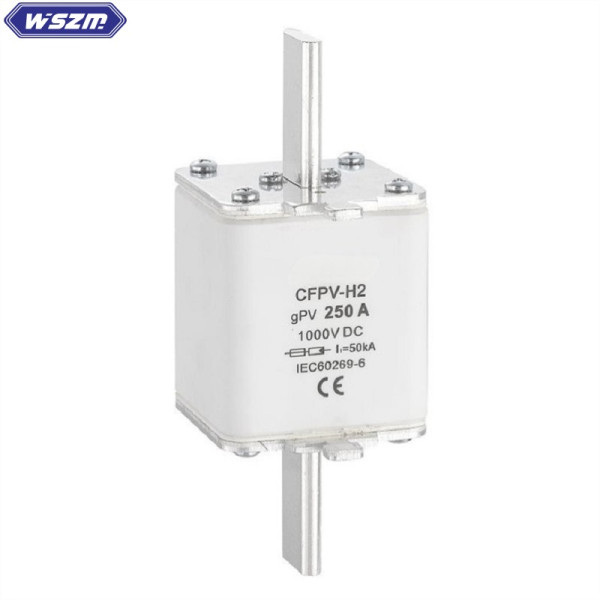

We have offered a compact, safe and economic circuit protect solution for solar system. As one of the solar broad portfolio of fuse products, the 1000Vdc CFPV NH fuses are specifically designed for the protection of photovoltaic system. The rated voltage of this series of fuses is up to 1000Vdc, the rated current is up to 50A, and the rated breaking capacity is up to 50KA. Fuse link element is encapsulated in the high-strength ceramics with the benefits of compact body size and high capacity of thermal shock resistance.

Features & Benefits

Long service life

Good temperature cycle withstand capability

Excellent performance at temperature extremes

High breaking capacity

Complete circuit protection

Application

1000V array combiner box

1000V central inverter

1000V disconnects

1000V string inverter

Supply Ability
100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 5000   >5000
Est. Time(days)    15    To be negotiated
