Product Description

Use installation

Ambient temperature: - 20 ℃ to 55 ℃

Altitude: less than 2000m;

Atmospheric conditions: the relative humidity of the atmosphere is less than 50% at the maximum temperature of 40 ℃, and higher relative humidity is allowed in low-temperature environment;

Operating voltage range: (62% - 120%) UN;

Installation category: Class II and III.

Pollution level: II;

Compliance standard: GB10963.1.

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

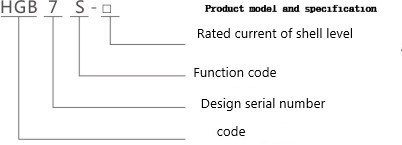

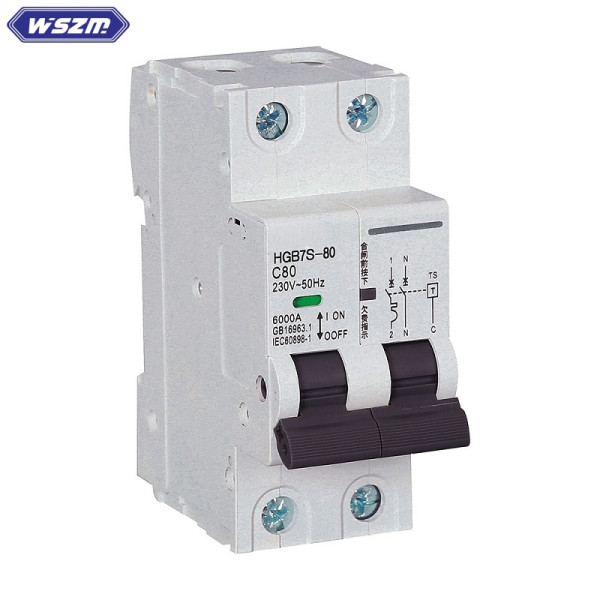

Hgb7s-80 miniature circuit breaker has the function of delayed shunt tripping. It is applicable to the line with AC 50 or 60Hz, rated voltage 230V and rated current up to 80A. It can carry out remote control breaking or automatic signal control breaking of the line. At the same time, it can protect the line from overload and short circuit. It can also be used for infrequent operation and conversion of the line.

Classification

According to rated current: 6, 10, 16, 20, 25, 32, 40, 50, 63A, 80A;

(Note: users with other current specifications can place special orders)

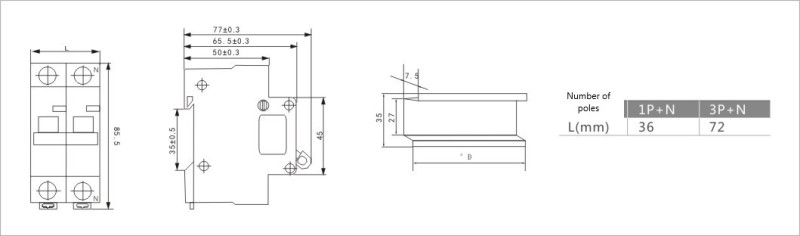

By stages: 1p + N, 3P + n

Breaking capacity: ICs = 6KA
