Product Description

Use installation

Ambient temperature: - 50 ℃ to 40 ℃, and the daily average value is lower than 35 ℃;

Altitude: less than 2000m;

Atmospheric conditions: atmospheric relative humidity at maximum temperature + 50 ℃,Less than 50%, high humidity in low temperature environment;

Installation category: embedded installation;

Compliance standard: GB10963.1.

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

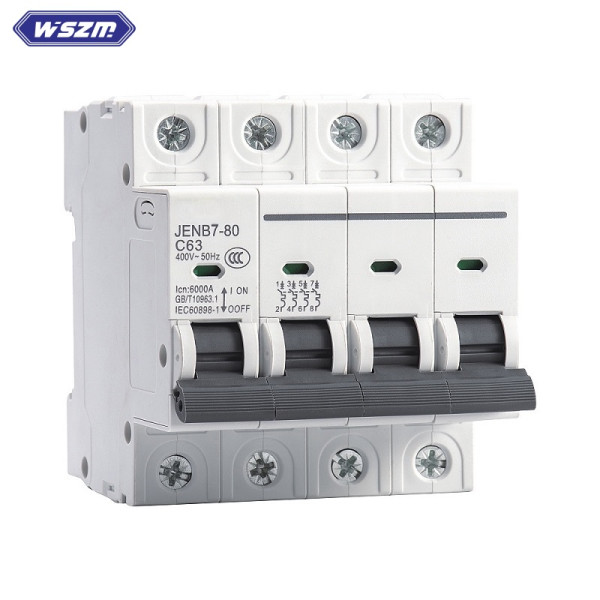

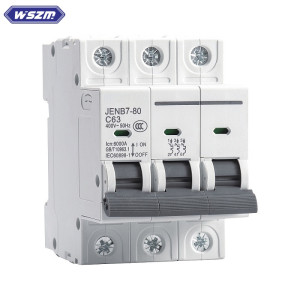

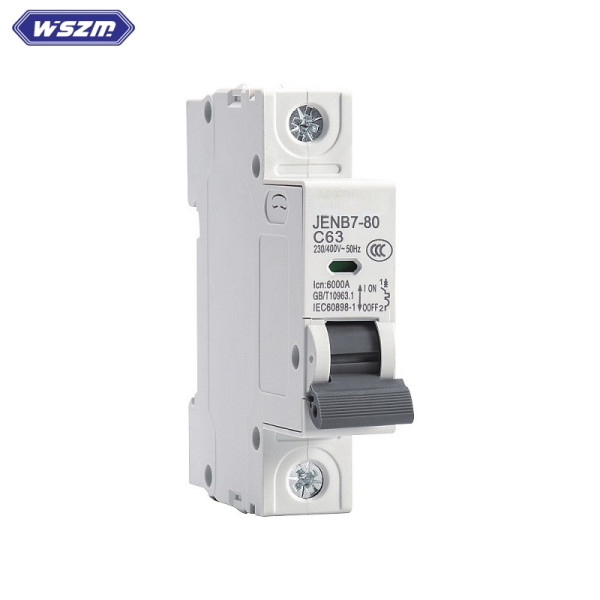

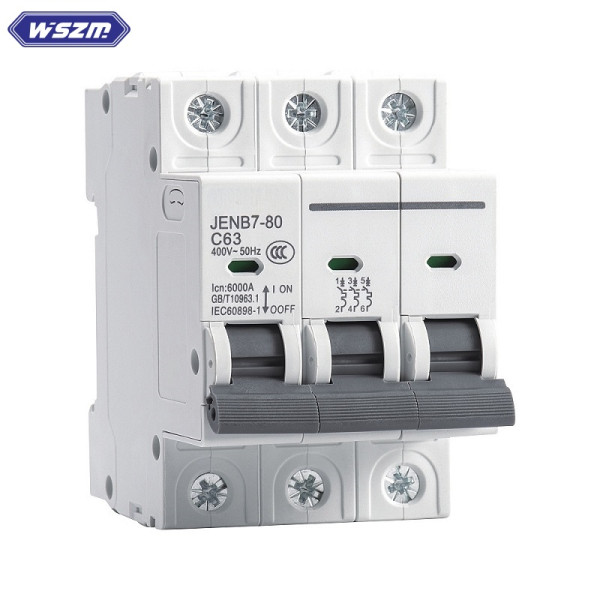

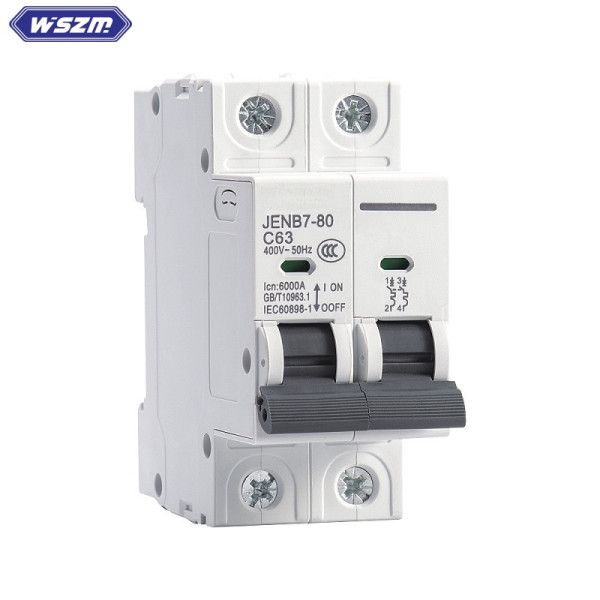

Jenb7-80 series miniature circuit breakers are mainly used for overload and short circuit protection in protection lines with AC 50 or 60Hz, single pole 230V, two, three and four pole 400V and current up to 80A. It can also be used to make and break electrical equipment and lighting lines infrequently under normal conditions. It is suitable for industrial and commercial lighting distribution systems.

Classification

According to rated current: 6, 10, 16, 20, 25, 32, 40, 50, 63A, 80A;

According to the series: unipolar, two pole, three pole and four pole;

According to the type of instantaneous release:

Type C: lighting protection type / type D: motor protection type;

Breaking capacity:

  Conventional type: 6KA

High breaking type: 10kA
