Product Description

Material: Composite Polymer
Rated Voltage: 20/35 kV
Type: Composite Insulator
Application: High Voltage
Tensile Strength: 12.5 KN / 70 KN

Supply Ability
50000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
Standard export package; customized packaging are accepted
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Product details

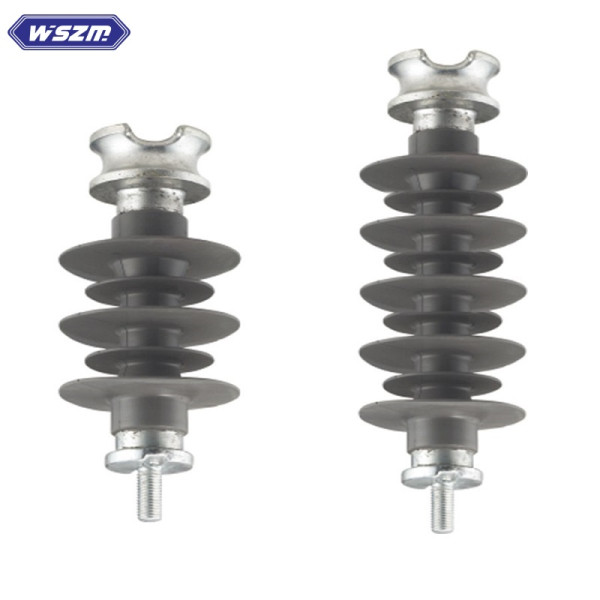

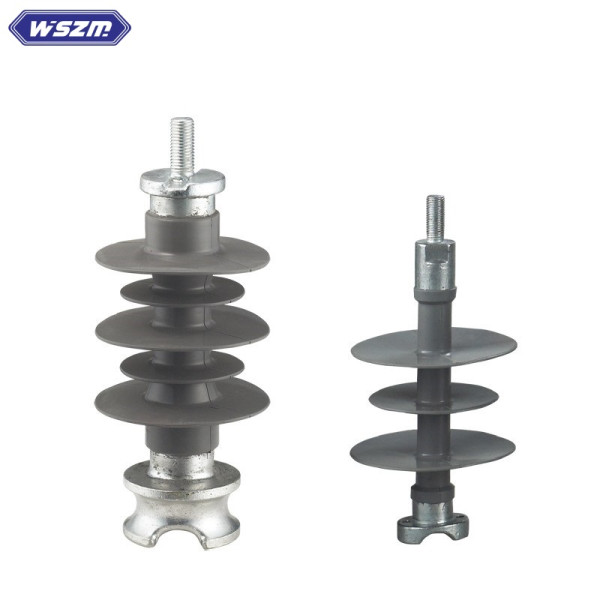

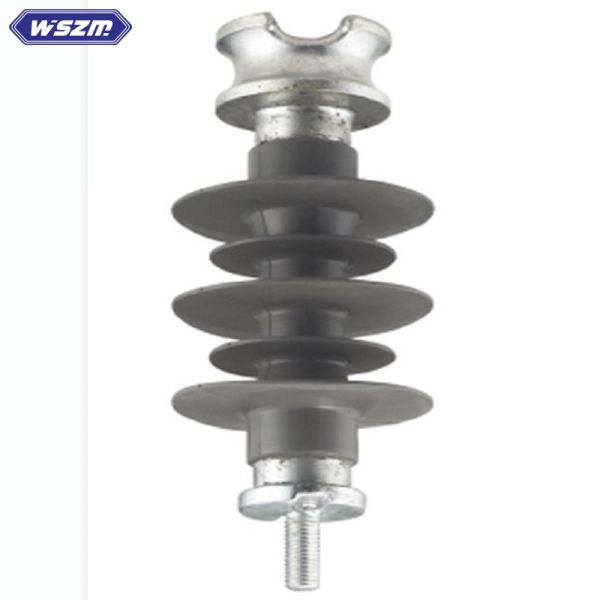

Silicon Rubber Insulator
With advanced producing equipment and methods,inspection means as well, our composite insulators reach up to the domestic and international standard, becoming the important and necessary insulator products in the high-voltage distribution line.

1.End Fitting: The fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.
2. The Silicon rubber rain shed.The silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-molding method, to make sure the validity of total creep-age distance under every climate and nasty conditions, as well as improve the pollution discharge of the insulators.Silicon rubber with fine formulas have good waterproof and leakage withstand ability.
3. The average thickness of protective cover.≥ 5 mm. comply whith IEC standard
4. Fiber rod.Use the ECR high-temperature and acid-proof fiber rod.
5. The end fitting.The end fitting uses maze type waterproof design, and out-cover rubber process, which enhanced the product waterproof greatly.The fittings made by special steel, together with advanced compression technique, ensuring the stability and accurate of insulators
