Product Description

Type:Clamp

Application:used for branch connection of building distribution system

Certificate:CE

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 2000        >2000
Est. Time(days)       20-25        To be negotiated

Feature:

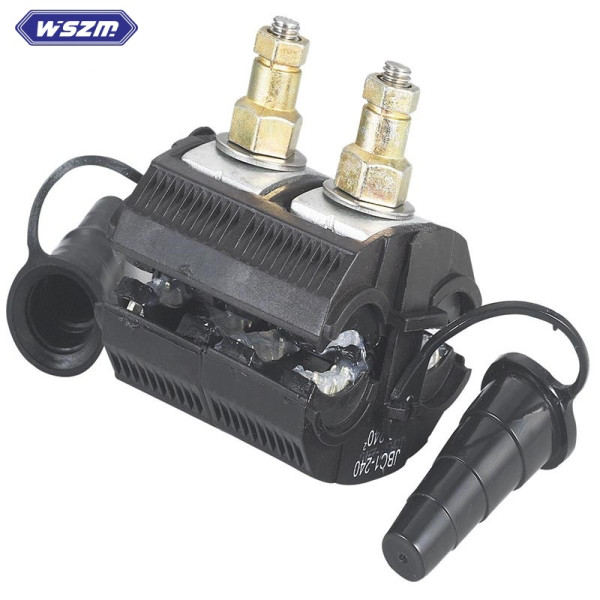

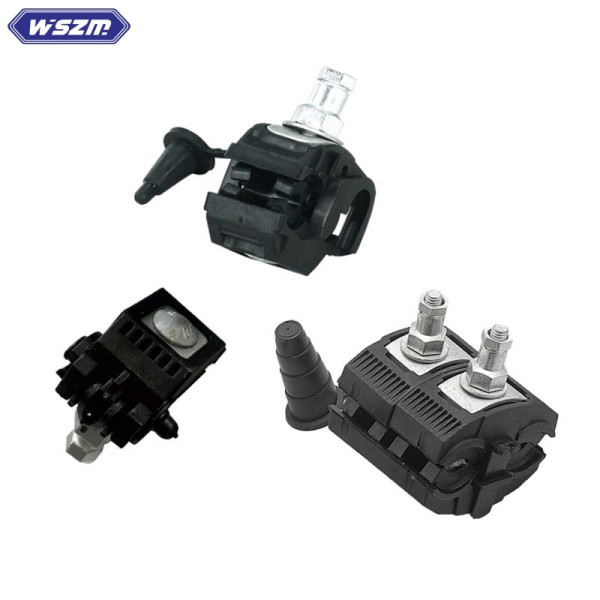

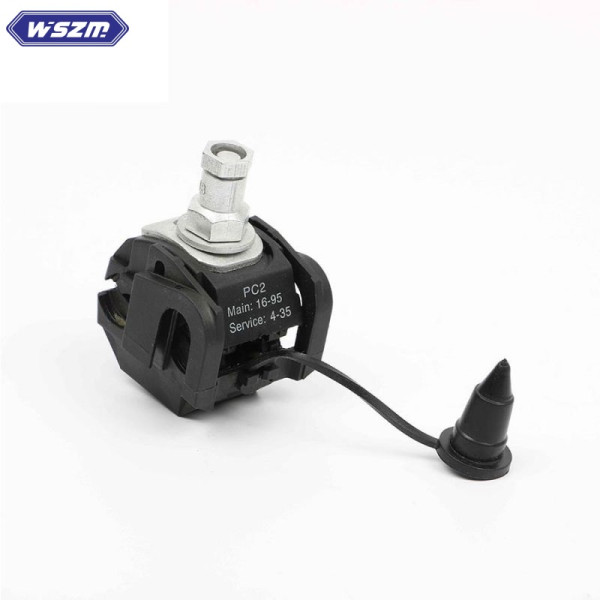

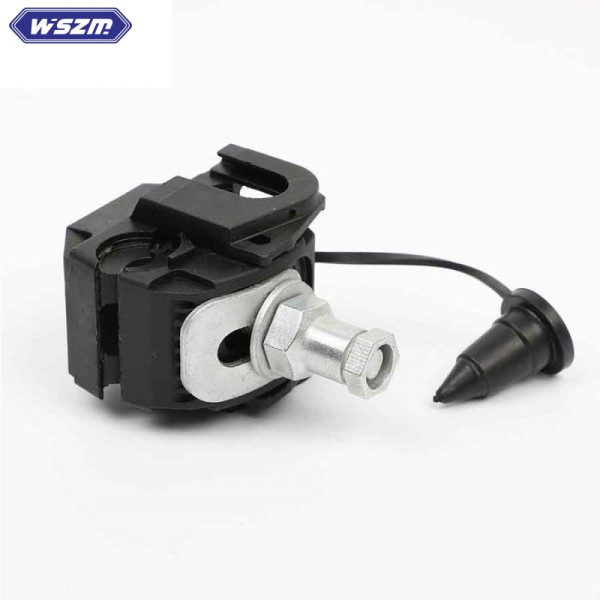

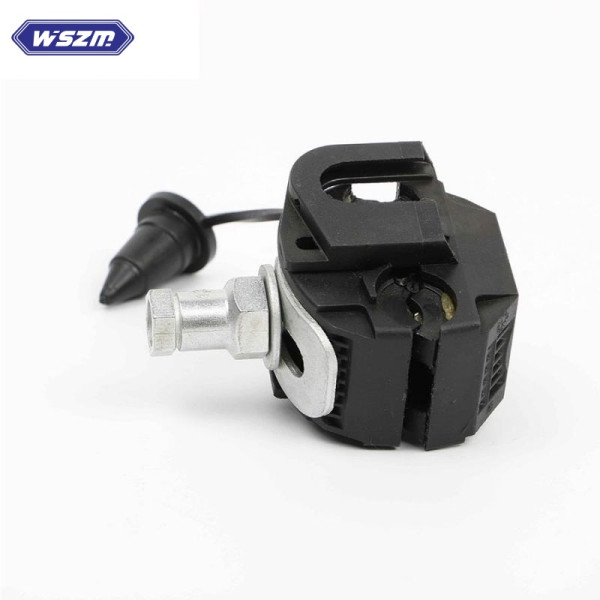

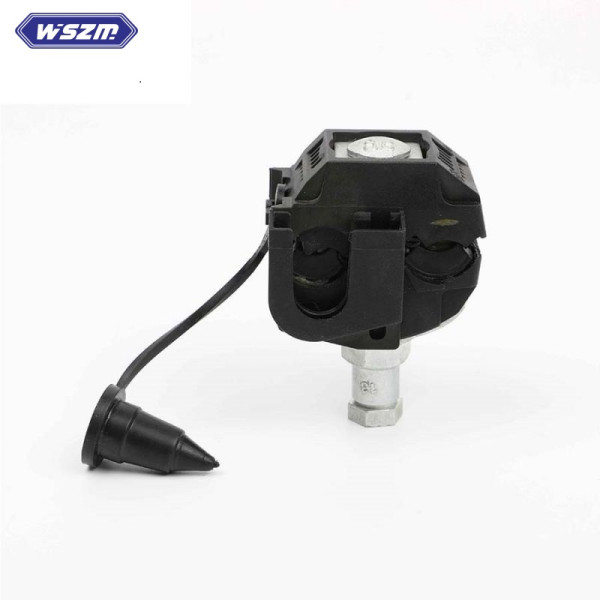

Insulation Piercing Connector

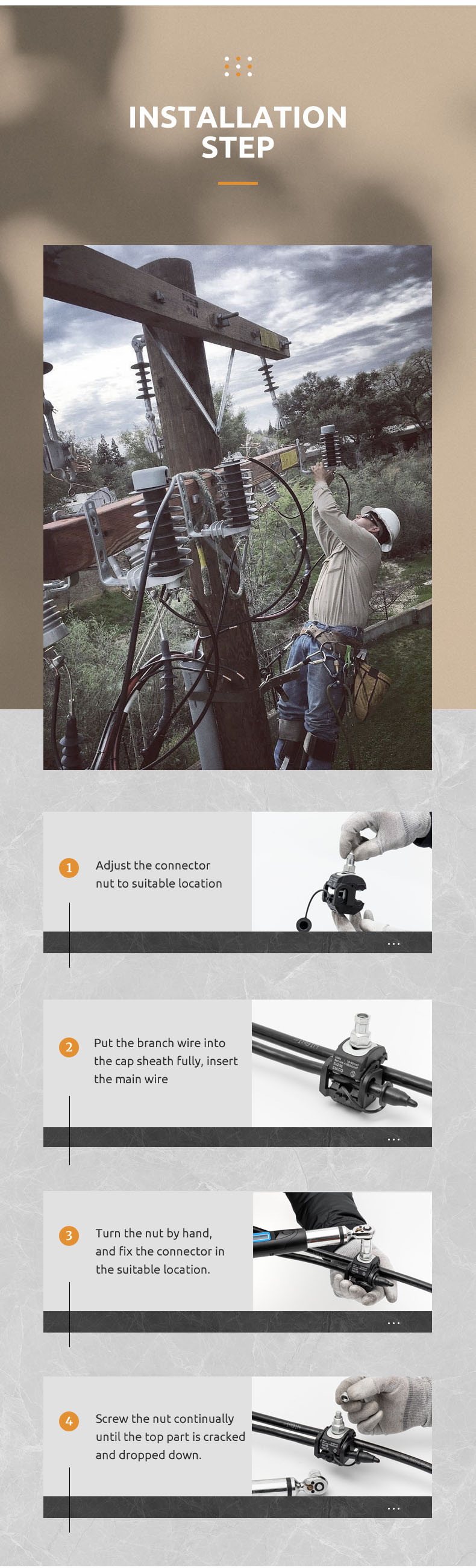

The JBC insulation piercing connector are applicable for all types of LV-ABC conductor as well as connections in service line system, Installation of JBC can be easily done by tightening the bolts to force the teeth penetrate the insulation is avoided for both lines.
> Main line: Insulated aluminium cable
> tap line:Insulated aluminium cable
> Body is molded from tough and weather resistant materials
> Special designed shear head bolt allows efficient installation under controlled shear torque which ensure the contact teeth properly penetrate the conductor without damaging the mechanical strength of the conductor
> Tested for water-tightness at the voltage of 6 kV for 1 min under water
> Safe live-line installation
> Seals and grease are applied to prevent moisure entering the cable and connector which guarantees excellent waterproof and corrosion resistant performance
> End cap is attached to the body. No loose parts could fall to ground during installation
> Standard: EN 50483-4, NFC 33-020, NFC 33-004
