Product Description

Use installation

Ambient temperature: below 50 ℃

Altitude: less than 2000m

Resistance characteristics: moisture resistance, mold resistance and radiation resistance

Installation conditions: the inclination angle is less than 22.5 °

Service environment: it can work reliably under normal vibration and earthquake (4G). It must be in the environment without corrosive metal, insulating gas, conductive dust and explosive dangerous substances.

Standard: GB14048 2。

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

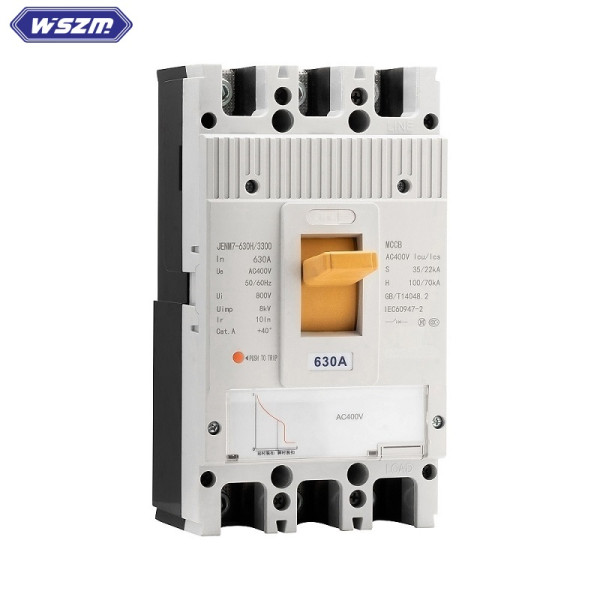

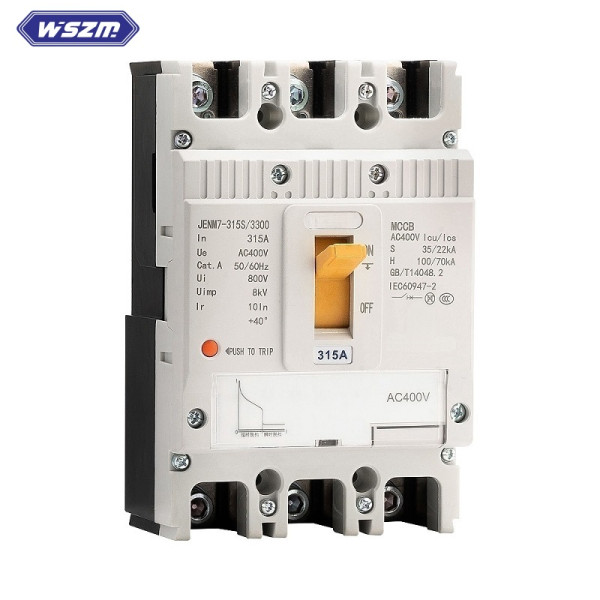

Series Molded Case circuit breakers are suitable for distribution network circuits with AC 50 or 60Hz, rated voltage up to 690V and rated working current up to 800A. They are used to distribute electric energy and protect lines and power equipment from overload, short circuit, under voltage and other faults. It can also be used as infrequent starting, overload, short circuit and under voltage protection of motor. The product has the advantages of small volume, high breaking height and short arcing, and can be installed vertically and horizontally.

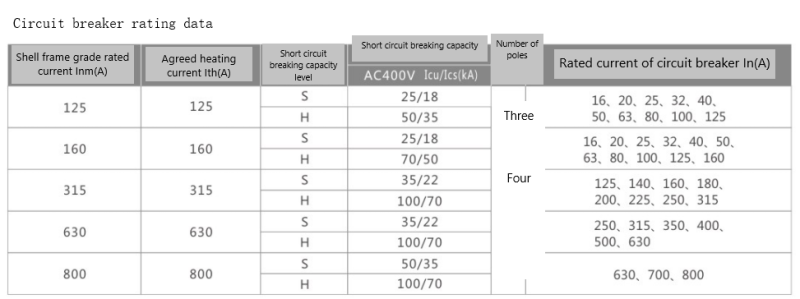

Classification

According to the shell frame grade: 125, 160, 315, 630 and 800

(Note: 125 position 63 shell frame upgrade, 160 is 125 shell frame upgrade, 315 is 250 shell frame upgrade, 630 is 400 shell frame upgrade.);

According to breaking capacity: s standard type, h high breaking;

According to the number of poles: 3 poles and 4 poles;

By use: for power distribution and motor protection;

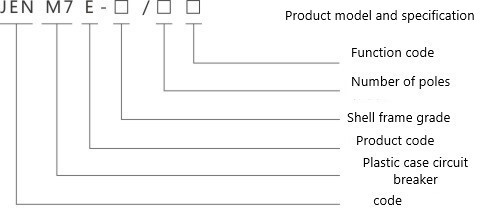

Product Code: non thermal magnetic
