Product Description

Use installation

Ambient temperature: - 50 ℃ to 40 ℃, daily average value lower than 35 ℃

Altitude: less than 2000m

Atmospheric conditions: the relative humidity of the atmosphere is less than 50% at the maximum temperature + 50 ℃, and there can be high humidity in low-temperature environment

Installation category: embedded installation

Compliance standard: GB10963.1

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

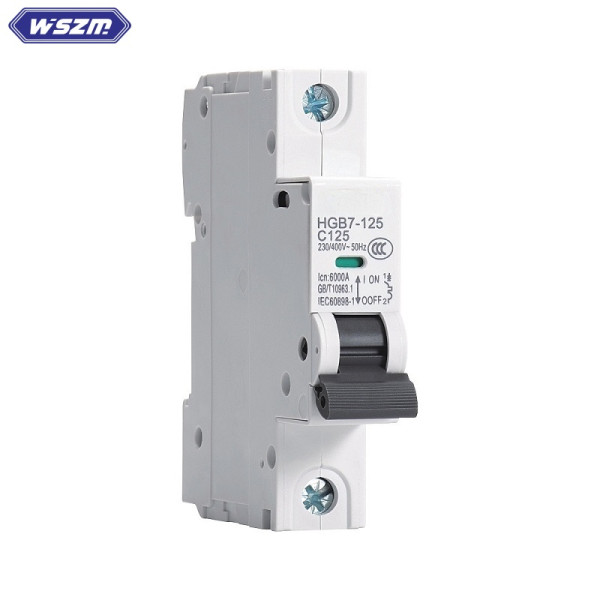

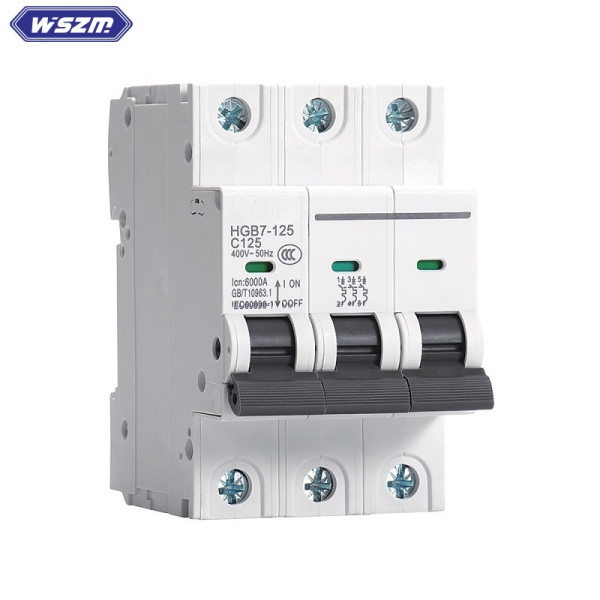

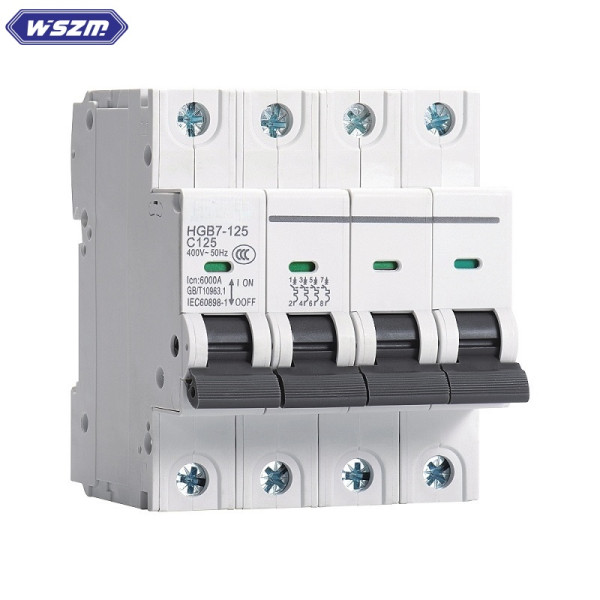

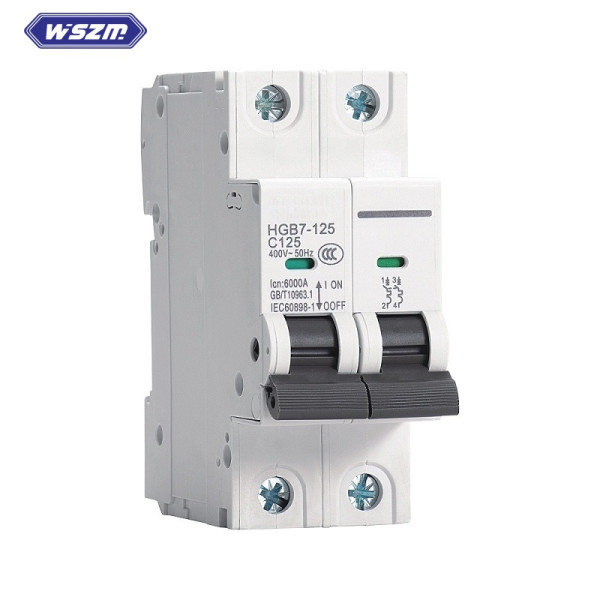

Hgb7-125 series high breaking miniature circuit breakers are mainly used for overload and short circuit protection in the protection lines with AC 50 or 60Hz, single pole, two pole 230V, three pole and four pole 400V and current up to 125A. It can also be used for infrequent on-off electrical equipment and lighting routes under normal conditions, and is suitable for industrial and commercial lighting distribution systems.

Classification

According to rated current: 63, 80, 100, 125A

According to the number of poles: single pole, two pole, three pole and four pole
