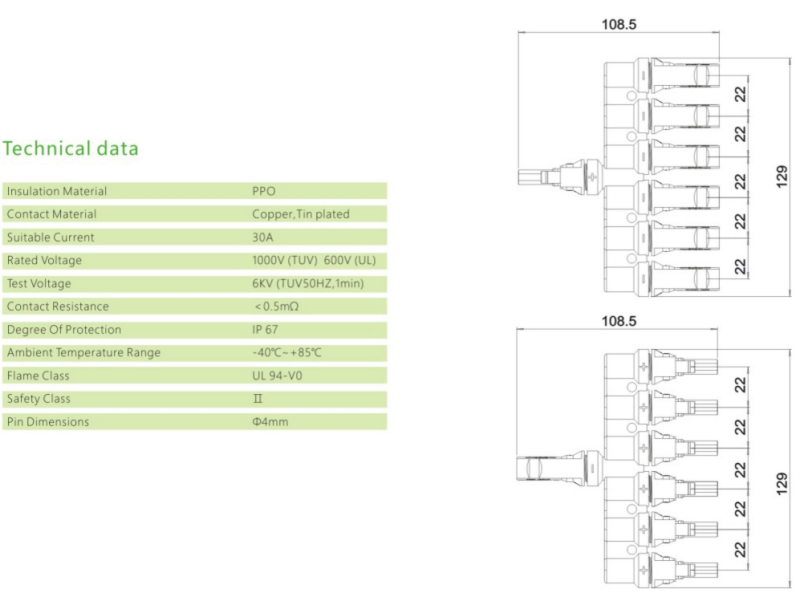

Product Description

Application: Power

Color: Black

Connector system: Φ4mm

Rated voltage: 1500V DC

Rated current: 30A

Comtact resistanceof plug connectors: 0.5mΩ

Cable size: 2.5mm2 - 6mm2

Contact core material: Copper alloy tin plated

Insulation material: PC/PPO

Supply Ability

10000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

Both Stamped and Formed and Machined/ Cold Formed contact types available, for easy of field installation Accepts wire gauges: 14AWG/2.5mm2,12AWG/4mm2,10 AWG/6mm2 Standard operating temperature range of -40℃ to 90 ℃

 0.5mΩ low resistance

 IP67 rating, mated(1 meter, 1 hour) & IP2X touch-proof
