Product Description

Over current protection is required in the photovoltaic power circuit, photovoltaic output circuit, inverter output circuit, and battery conductors for all applications that comply with the National Electrical Code. CFPV fuses can protect your off-grid or grid-tied PV system from accidental ground faults and line faults.

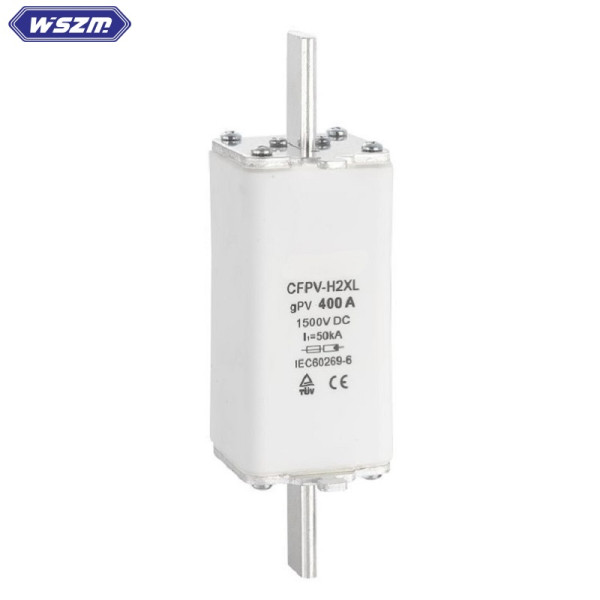

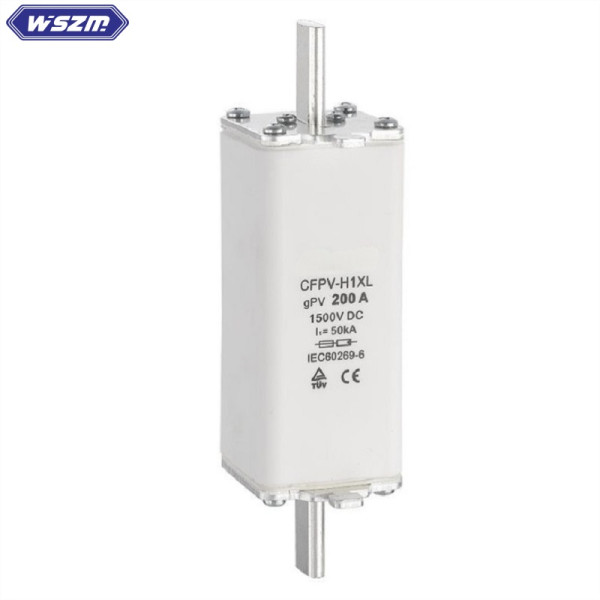

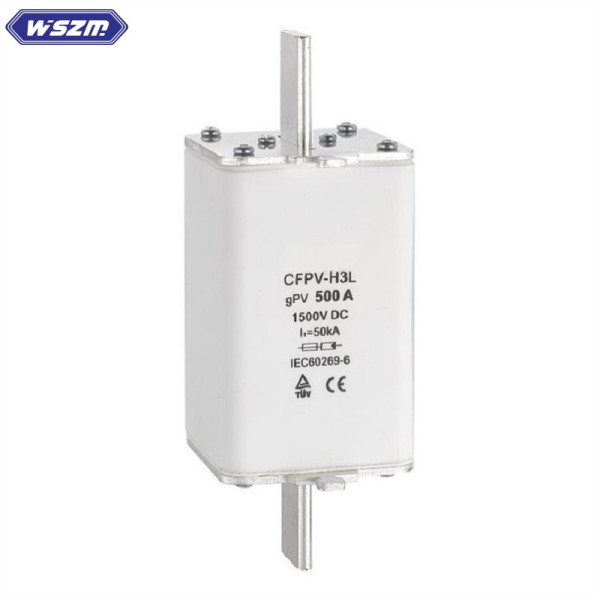

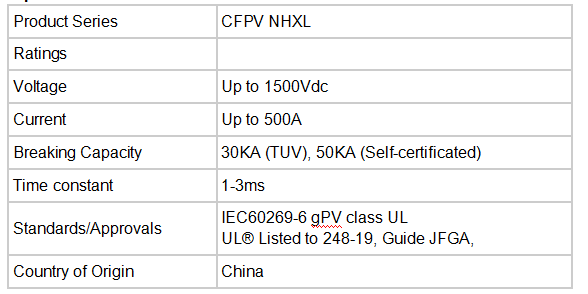

We have offered a compact, safe and economic circuit protect solution for solar system. As one of the solar broad portfolio of fuse products, the 1500Vdc CFPV NHXL fuses are specifically designed for the protection of photovoltaic system. The rated voltage of this series of fuses is up to 1500Vdc, the rated current is up to 500A, and the rated breaking capacity is up to 50KA. Fuse link element is encapsulated in the high-strength ceramics with the benefits of compact body size and high capacity of thermal shock resistance. For application flexibility

Features & Benefits

Saves enclosure space

Bolt-on version suit for standardizing busbar

Variation of fixing options

Application

1500V photovoltaic applications

1500V central inverter

1500V disconnects

1500V string inverter

Supply Ability
100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 5000   >5000
Est. Time(days)    15    To be negotiated
