Product Description

Use installation

Ambient temperature: below 50 ℃

Altitude: less than 2000m

Resistance characteristics: moisture resistance, mold resistance and radiation resistance

Installation condition: inclination angle is lower than 22.5 °

Operating environment: it can work reliably under normal vibration and earthquake (4G). It must be free of corrosive metal and insulating gas, conductive dust and explosion In the environment of hazardous substances.

Standard: gb14048.2

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

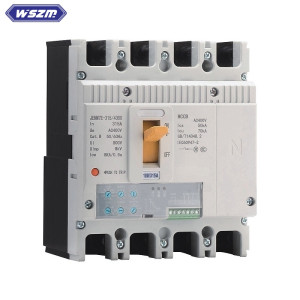

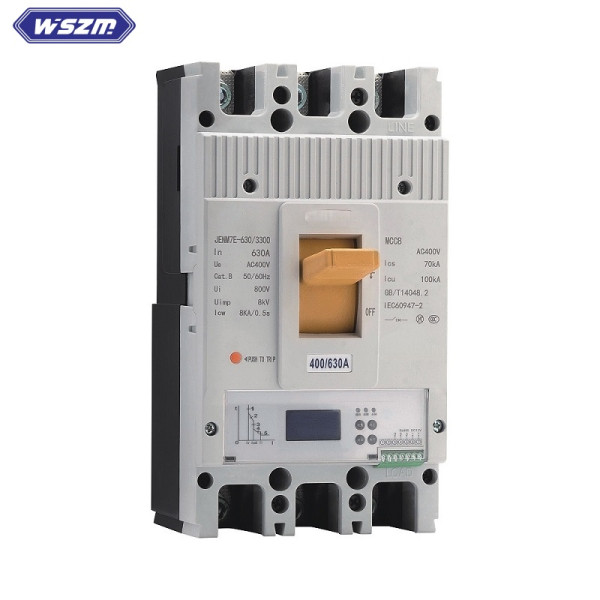

Jenm7e series electronic molded case circuit breakers are suitable for distribution network circuits with AC 50 or 60Hz, rated working voltage up to 690V, and rated working current up to 800A. They are used to distribute electric energy and protect lines and power supply equipment from overload, short circuit, undervoltage and other faults. It can also be used for infrequent starting, overload, short circuit and undervoltage protection of the motor. The product is small in size, high in breaking and short in arcing, and can be installed vertically and horizontally.

Classification

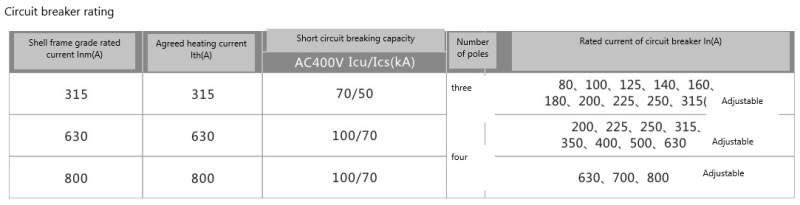

According to shell frame grade: 315, 630, 800

(Note: 160 refers to 125 shell rack upgrade type, 315 refers to 250 shell rack upgrade type, and 630 refers to 400 shell rack upgrade type.);

According to breaking capacity: h high breaking;

According to the number of poles: 3 poles and 4 poles;

According to the purpose: for power distribution and motor protection;

Product Code: e-electronic.
