Product Description

Model Number:LMZJ1-1

Usage:Current

Phase:Single, Three

Coil Structure:Ring

Coil Number:AUTOTRANSFORMER

Product name:current transformer

Frequency:50/60Hz

Standard:IEC60044-1,GB1208-2006

Class:0.5s 0.2s

Size:156*144mm

Color:Red

Supply Ability

Supply Ability

3000 Piece/Pieces per Month

Packaging & delivery

Packaging Details：Standard export carton

Port：Ningbo

Lead Time:
Quantity(Pieces)    1 - 1000   >1000

Est. Time(days)    10-15    To be negotiated

Feature.

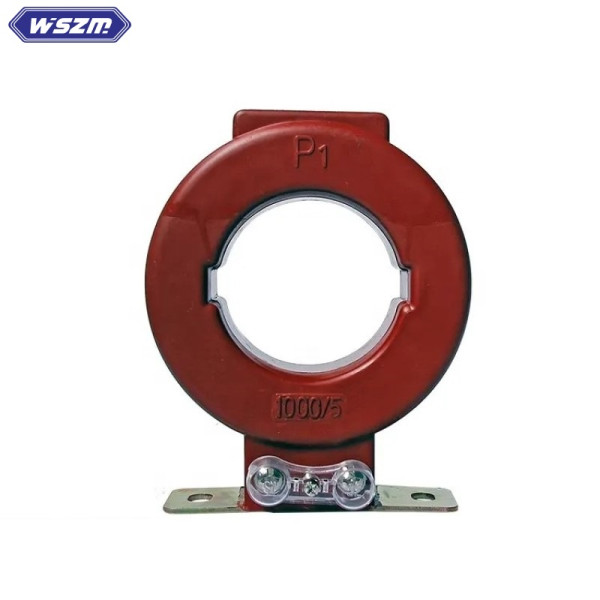

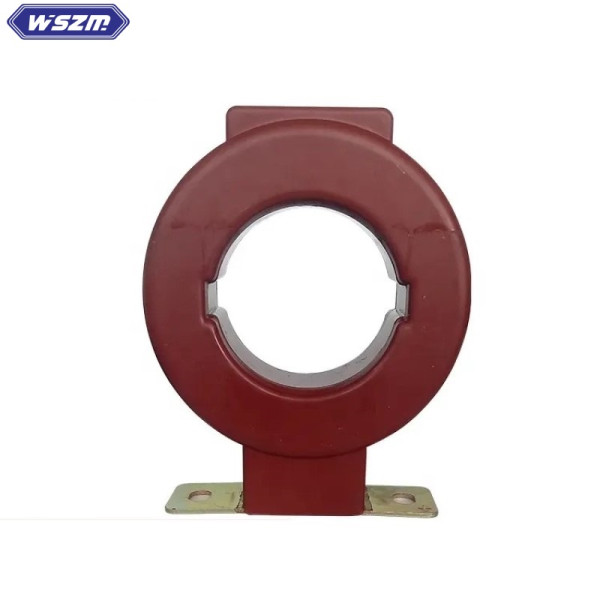

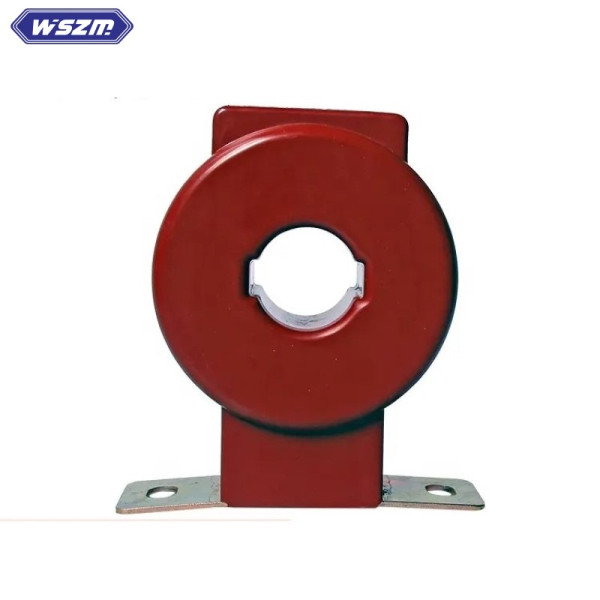

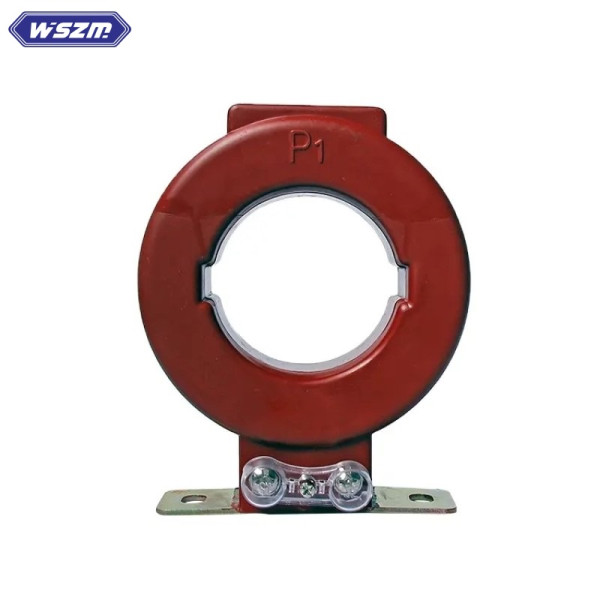

1. The Epoxy Cover of Cast Resin Current Transformer LMZJ1-0.5 is used for insulating between the secondary coil and the primary insertion (cable or bar).
2. The transfotmer has Large size conductor-window, which allows easy cable or bar insertion.

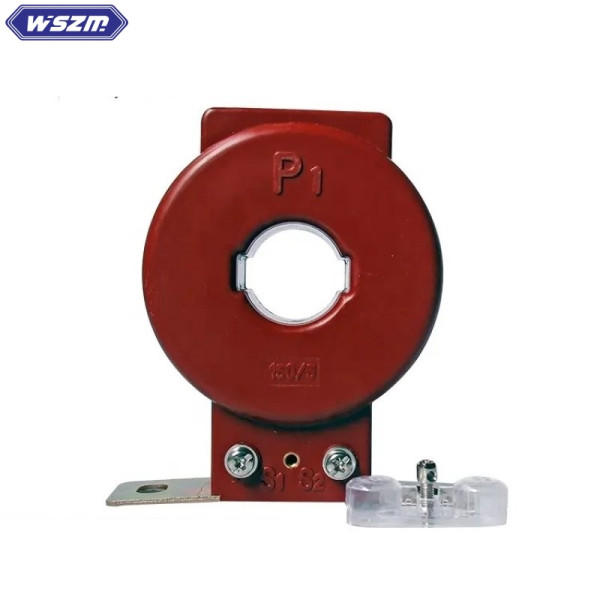

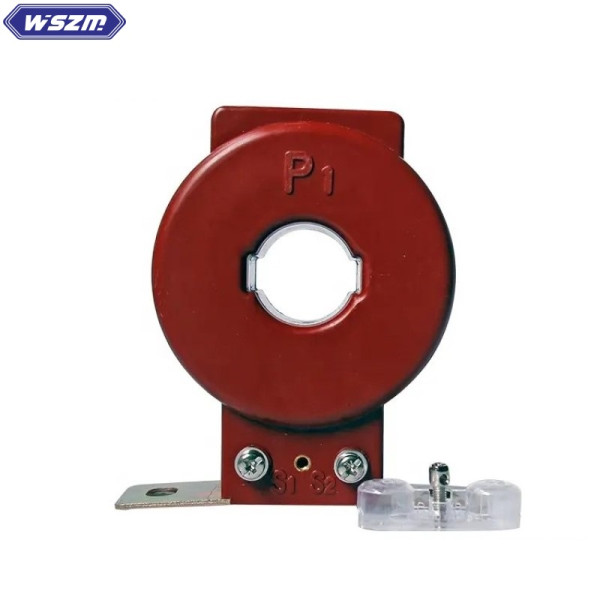

3. The Terminal block has a PC plastic cober or terminal box made a aluminum and sealing screw.

Working Condition：

Place of installation: Indoor

Altitude less than 1000 meters.

Ambient working temperature -5 to 40 degree

Ambient humidity less than 80% at 20 degree

Atmospheric conditions: No pollutants
