Product Description

Use installation

Ambient temperature: below 50 ℃

Altitude: less than 2000m

Resistance characteristics: moisture resistance, mold resistance and radiation resistance

Installation condition: inclination angle is lower than 22.5 °

Operating environment: it can work reliably under normal vibration and earthquake (4G). It must be in an environment free of corrosive metals, gases damaging insulation, conductive dust and explosive substances.

Standard: gb14048.2.

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 1000        >1000
Est. Time(days)       20-25        To be negotiated

Feature:

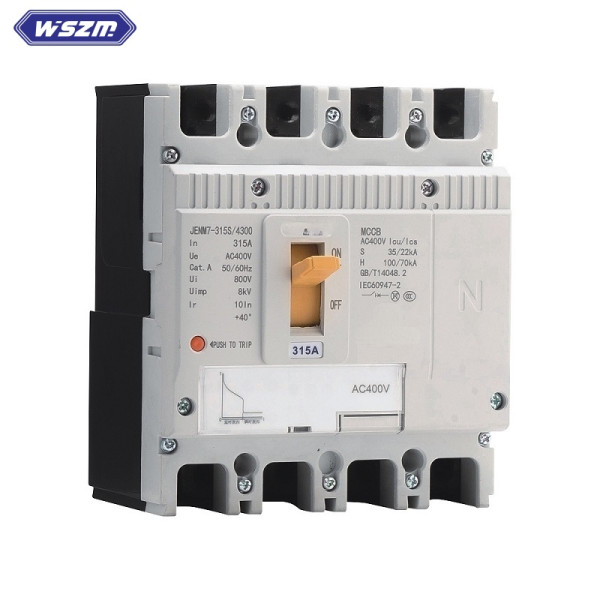

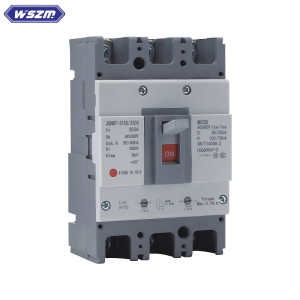

Jenm7 (RP) series thermo magnetic adjustable molded case circuit breakers are applicable to AC 50 or 60Hz, rated voltage to 800V, working current to 800A, and current adjustable range of 70% - 100%. Available at any time. In the distribution network circuit, it is used to distribute electric energy and protect the line and power supply equipment from overload, short circuit, under voltage and other faults. It can also be used for infrequent starting, overload, short circuit and under voltage protection of the motor. The product is small in size, high in breaking and short in arcing, and can be installed vertically and horizontally.

Classification

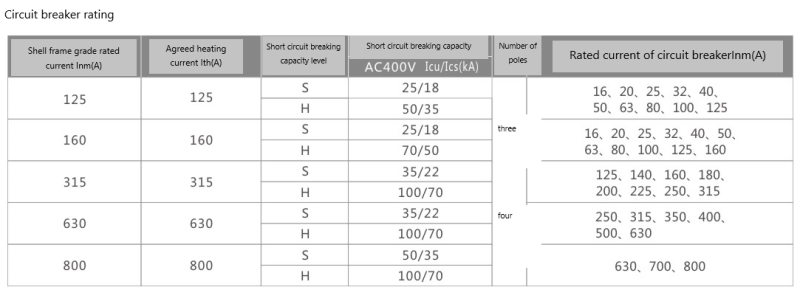

According to shell frame grade: 125, 160, 315, 630, 800

(Note: 125 position 63 shell rack upgrade type, 160 is 125 shell rack upgrade type, 315 is 250 shell rack upgrade type, 630 is 400 shell rack upgrade type.);

According to breaking capacity: s standard type, h high breaking;

According to the number of poles: 3 poles and 4 poles;

According to the purpose: for power distribution and motor protection;

Product Code: none thermal magnetic type
