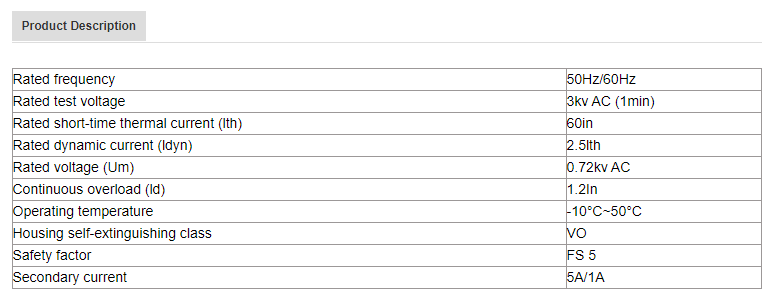

Product Description

Model Number:MSQ-30 300/5A

Usage:Instrument

Phase:Three

Coil Structure:TOROIDAL

Coil Number: Auto transformer

Rated frequency:50Hz/60Hz

Ration:300/5A

Rated voltage (Um):0.72kv AC

Rated power in class 1.0:2.5VA

Operating temperature:-10°C~50°C

Rated current up to  :50a to 6000A

Class:0.5/1.0

Use:Industrial

Supply Ability
10000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
Export standard carton box
Lead Time:
Quantity(Pieces)    1 - 1000   >1000

Est. Time(days)    10-15    To be negotiated

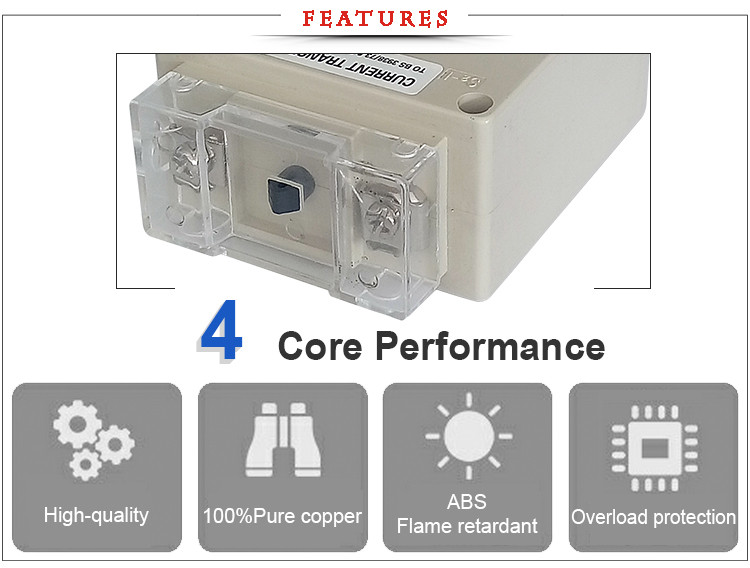

Feature

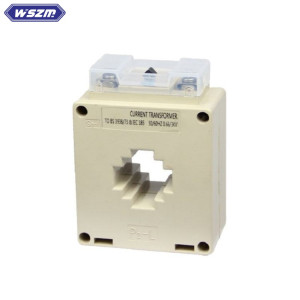

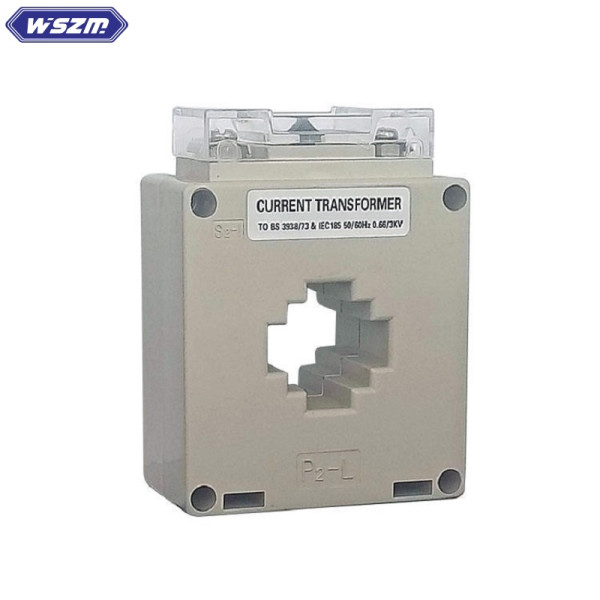

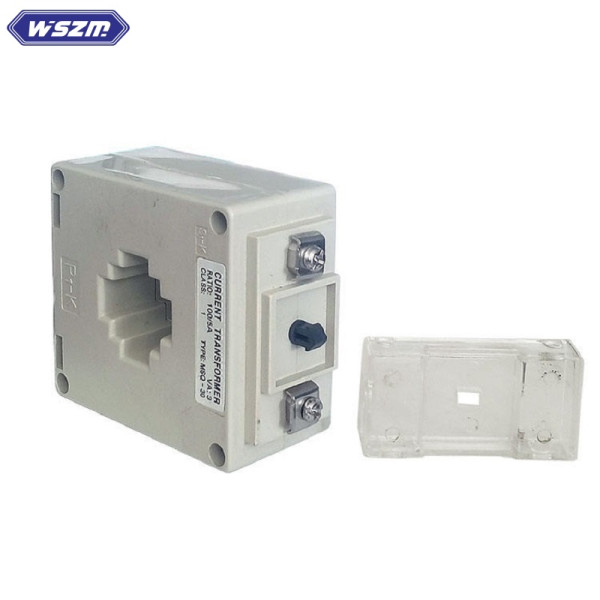

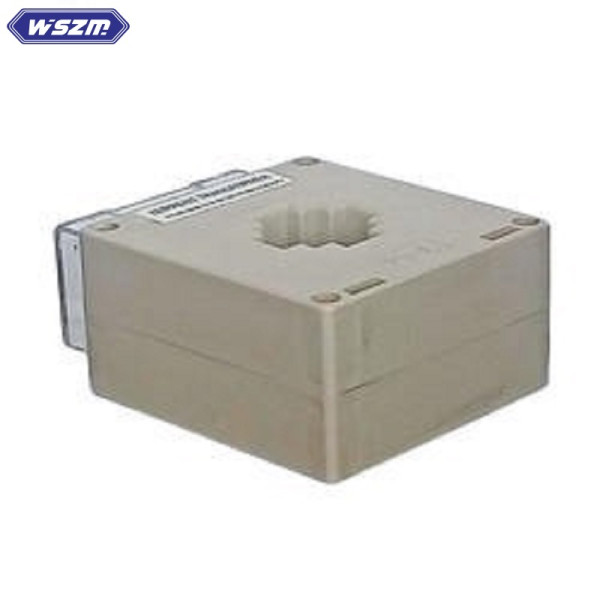

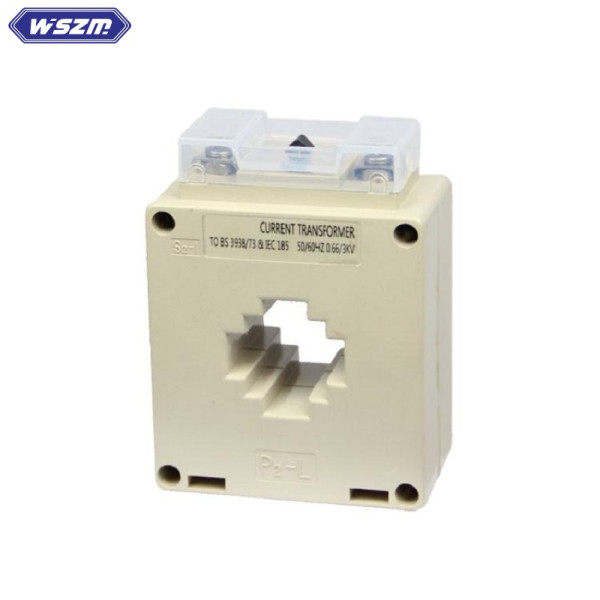

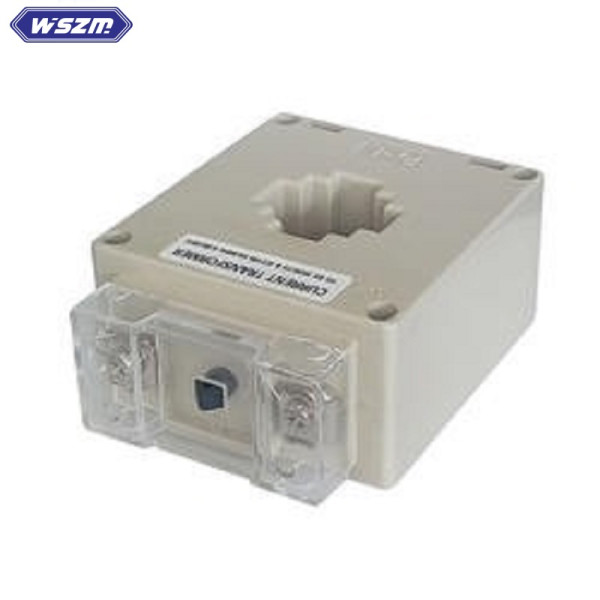

30mm Inner Size 300A / 5A Current Transformer (MSQ-30 300/5A)
The MSQ Series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or busbar circuit.The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.

Two installation methods: Panel / Busbar.
Wide inner window,allowing clamping of big cables or busbar
Wide range of sizes to accommodate all the existing installation
Primary current from 5A to 5000A
