Product Description

Type:Lug

Material:strength insulation material

Conductor:Copper and Aluminium

Certificate:ISO9001:2008 and CE
Function: Simple Installation,Safe Use,Cheap
Material: CU≥99.9%，Al≥99.5%

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery
Packaging Details
packing by standard export carton, or according to customer's request
Lead Time:
Quantity(Pieces)    1 - 3000        >3000
Est. Time(days)       20          To be negotiated

Feature:

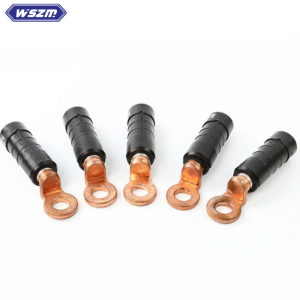

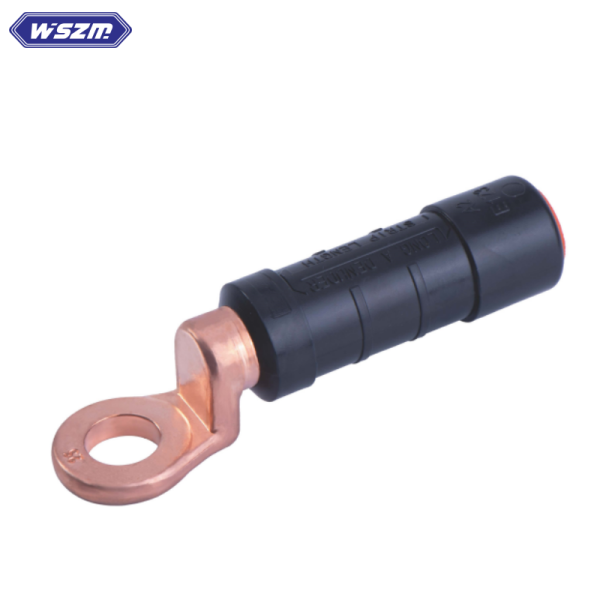

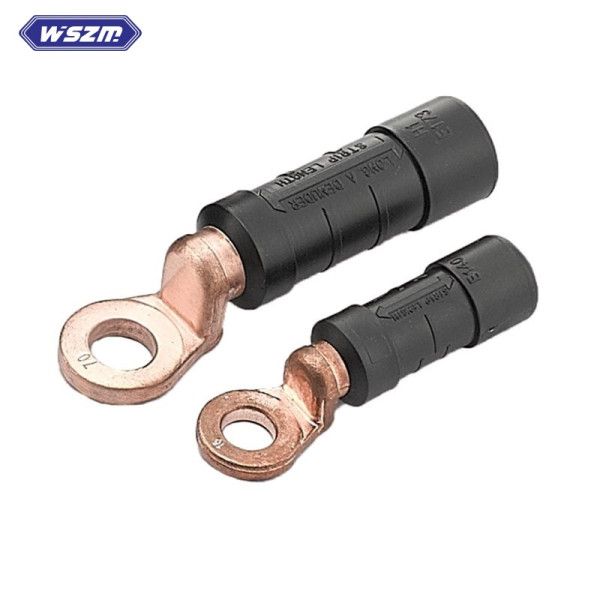

CPTAU Type Pre-Insulated Bi-metal Lug

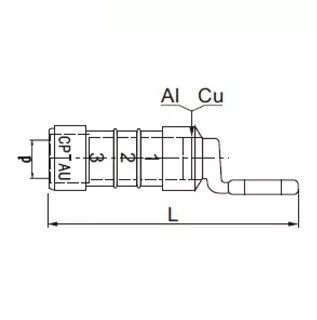

The CPTAU pre-insulated bi-metal lug is used to establish connection between Lv-ABC cable and electrical equipment's, Palm is made of 99. 9% pure copper and sleeve is made of 99.6% pure aluminium.

> Stripping of cable insulation is required before insertion

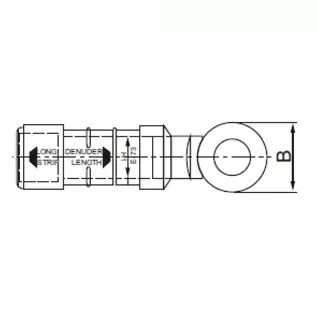

> Clear marks moulded onto the connector body, infromation  including crImping sequence and frequency; Cable size; Stripping length of cable; Crimping Die Size

> Cross-section of conductor can be easily identified by the color code of elastromeric rings

> Elastomeric ring and pre-filled grease enable superwaterproof performance

> Watertightness test carried out at 6kv for 1 minute under water.

> Insulation tube is made of weather and UV resistant polymer.

> Prefiled with jointing compound

> Standard: EN 50483-4, NFC 33-02 1
